• World Bank Class 1 profiler with a choice of one, two or three laser combinations to suit all budgets
• Simple turnkey operation
• Can be easily shipped for remote survey requirements and short-term vehicle installations

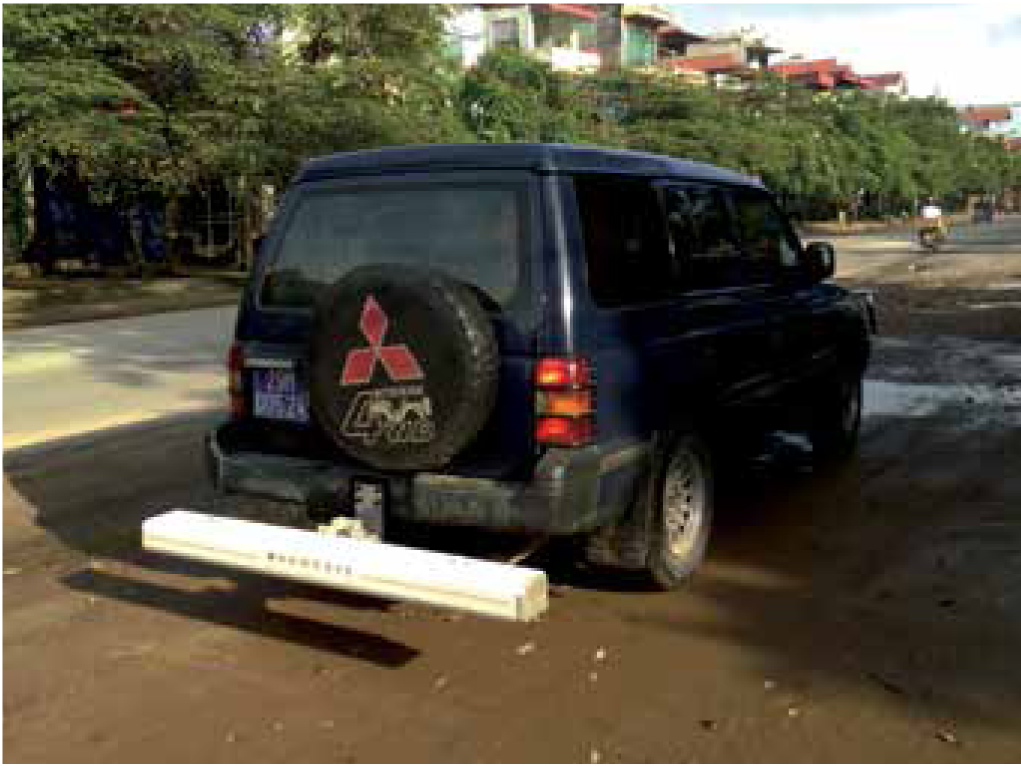

• Easily installed on a vehicle without special tools or technical personnel

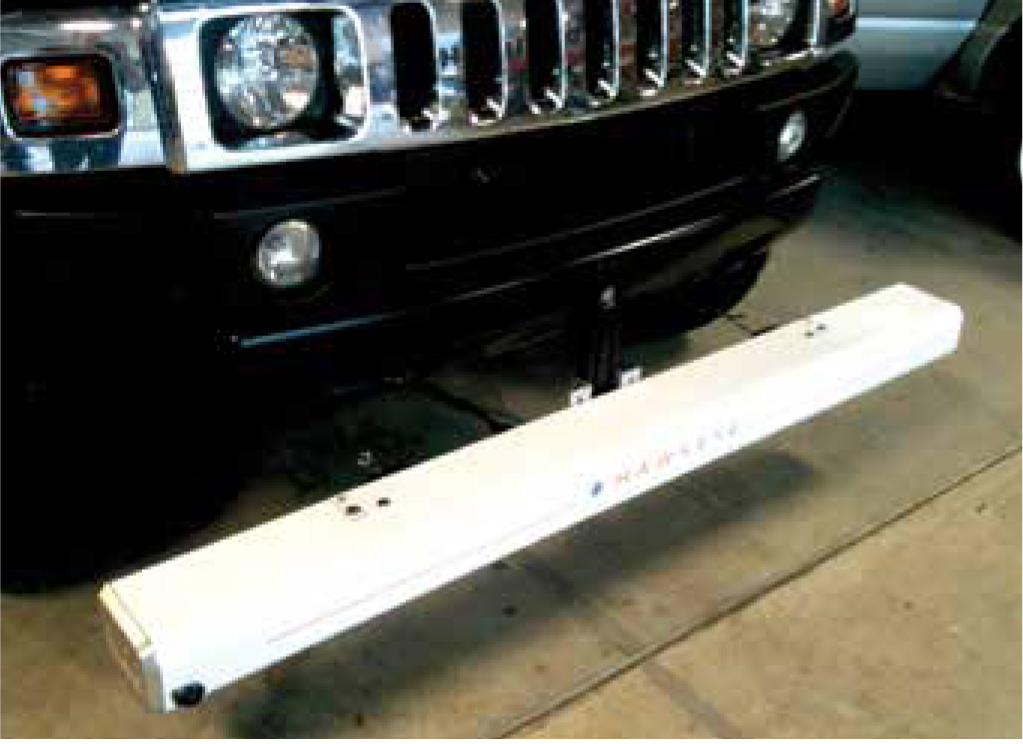

• Lightweight aluminium beam with external weatherproof housing
• Data is linked to chainage and GPS coordinates
• Operational at highway speeds to reduce survey time and costs
• Results are independent of vehicle type

• Pavement condition assessment
• Accurate quality assessments
• Quality control
• Contract validation

• Longitudinal profile
• Roughness (IRI, NAASRA, Ride Number, HATI)
• Macrotexture (MPD and SMTD)
• Rit index
• GPS location / distance

• ASTM E950: Longitudinal profile
• AASHTO PP37: Pavement roughness
• ASTM E1845: Pavement macrotexture
• ISO 13473: Mean Profile Depth (MPD)

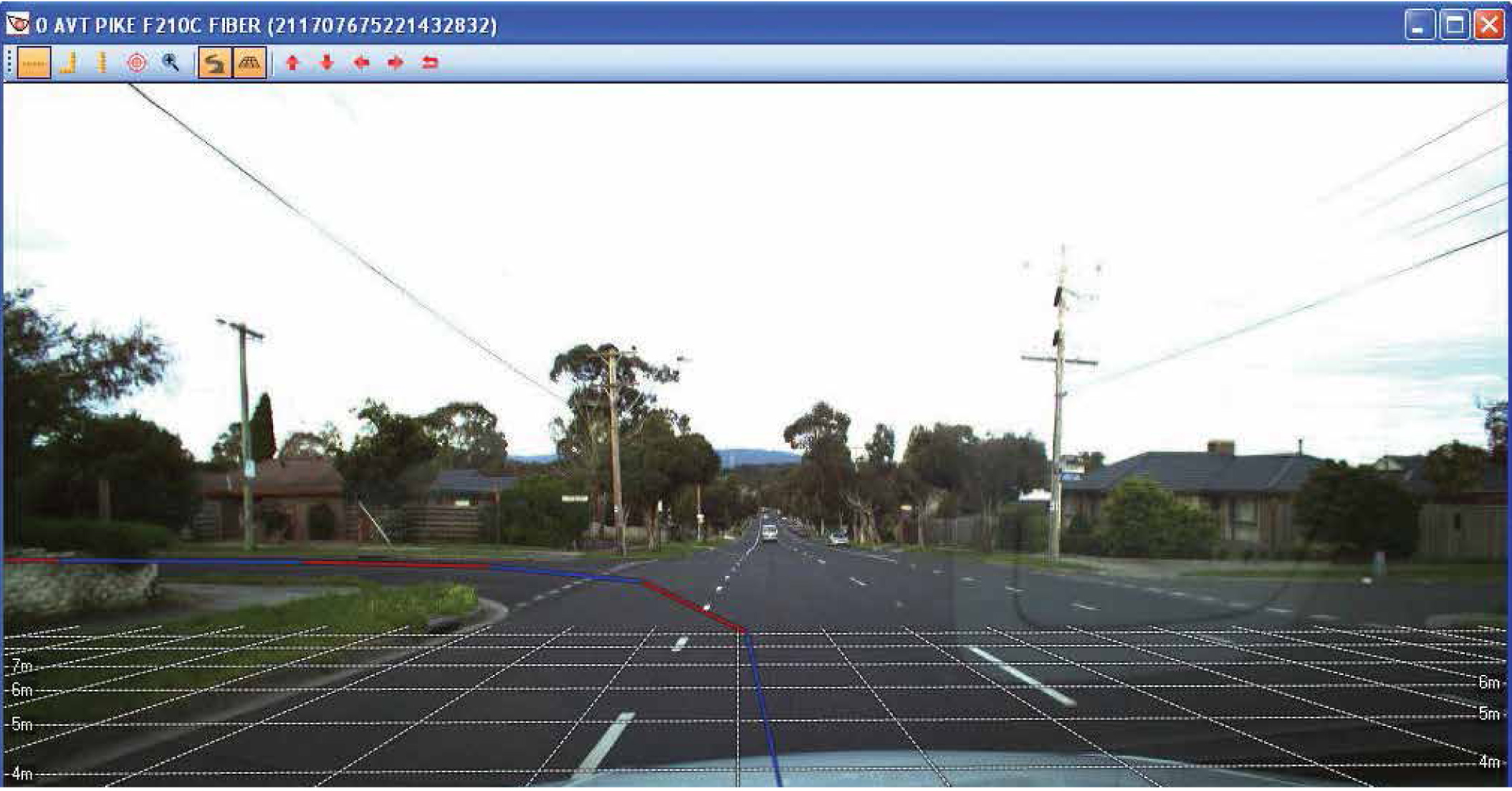

The H1000 Digital Imaging System (DIS) is an imaging unit for visually capturing and locating roads and roadside features.

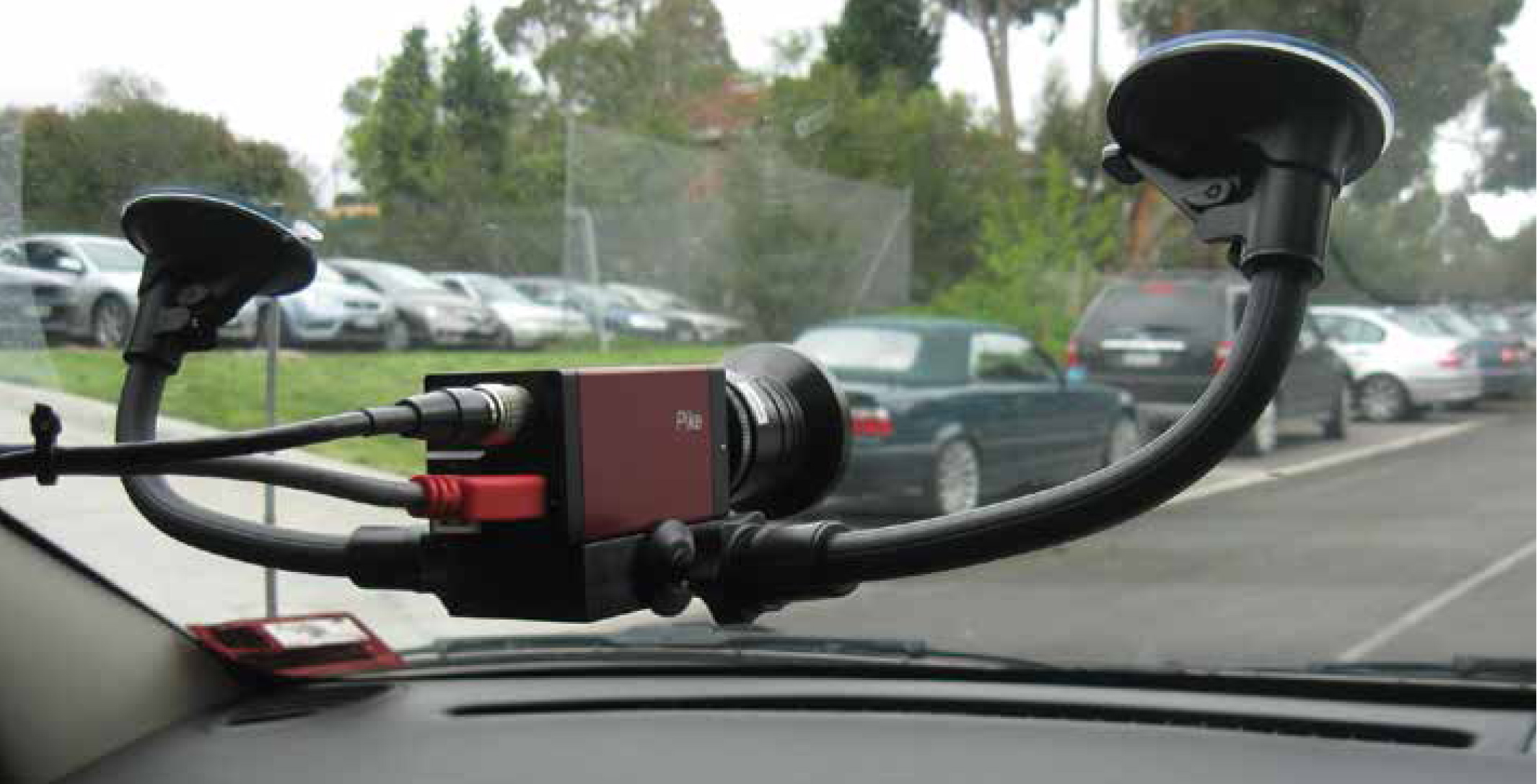

The single, full high definition (HD), colour camera can be mounted on a windscreen or vehicle dashboard.
The DIS is completely portable, using a suction mounted camera and transportable carry case, allowing for the system to be easily transferred between vehicles.
An accurate Distance Measuring Instrument (DMI) and the Heartbeat module are used to precisely link the data to distance/chainage.

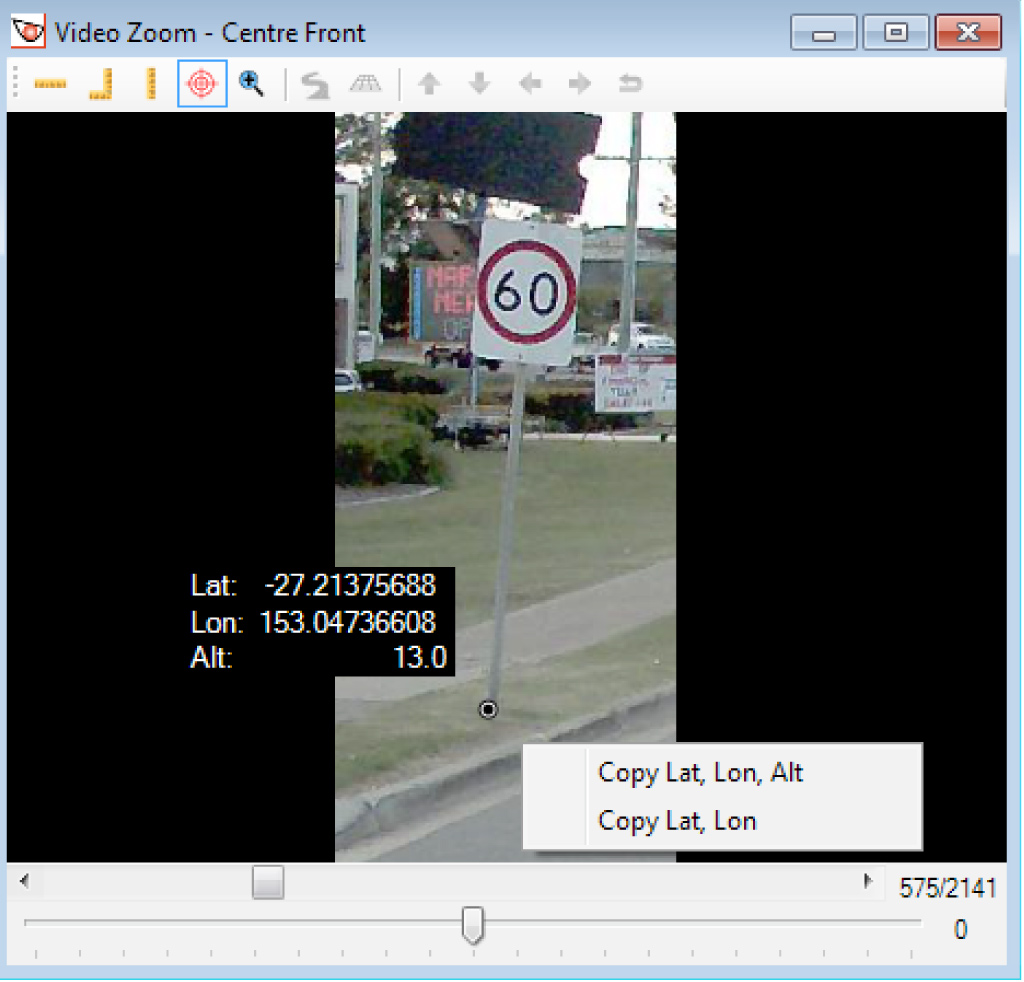

Used in conjunction with the Hawkeye Processing Toolkit software, the acquired images can be reviewed quickly and efficiently with the ability to locate assets, assess their condition and export the individual images to asset management systems.
The H1000 DIS is capable of supporting a profiler with up-to three lasers, two digital imagery cameras, DGPS and a Gipsi-Trac Geometry system.

• Up to two full HD cameras can be supported
• Simple turnkey operation
• Can be shipped for remote survey requirements and short-term vehicle installations
• Uses .AVI storage files
• Data is linked to chainage and GPS coordinates
• Operational at highways speeds to reduce survey time and costs
• Ideal for use on a variety of vehicles
• Georeferencing and measurement capabilities

• Visual identification of roadside features and assets
• Right of way assessment
• Asset location for GIS applications
• Road safety assessment

• Digital imagery
• GPS location / distance
• Asset location for GIS applications
• Shapefiles

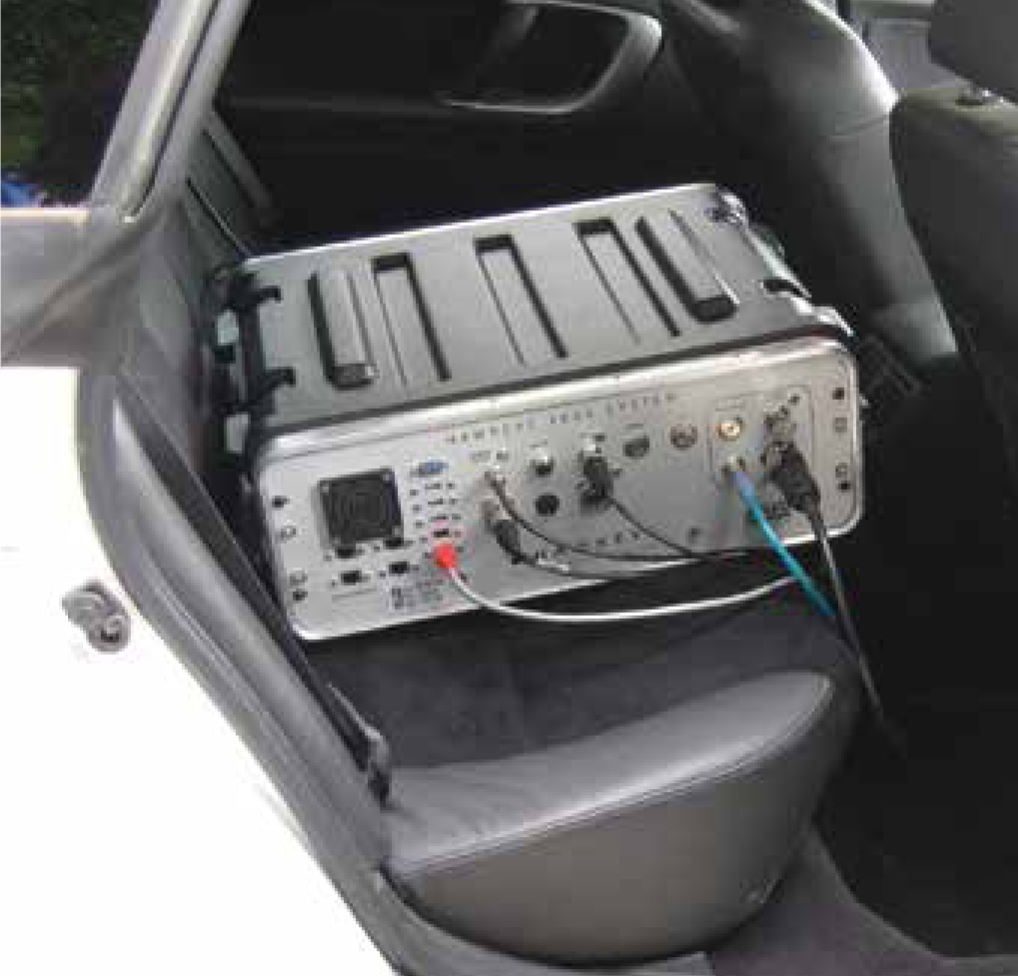

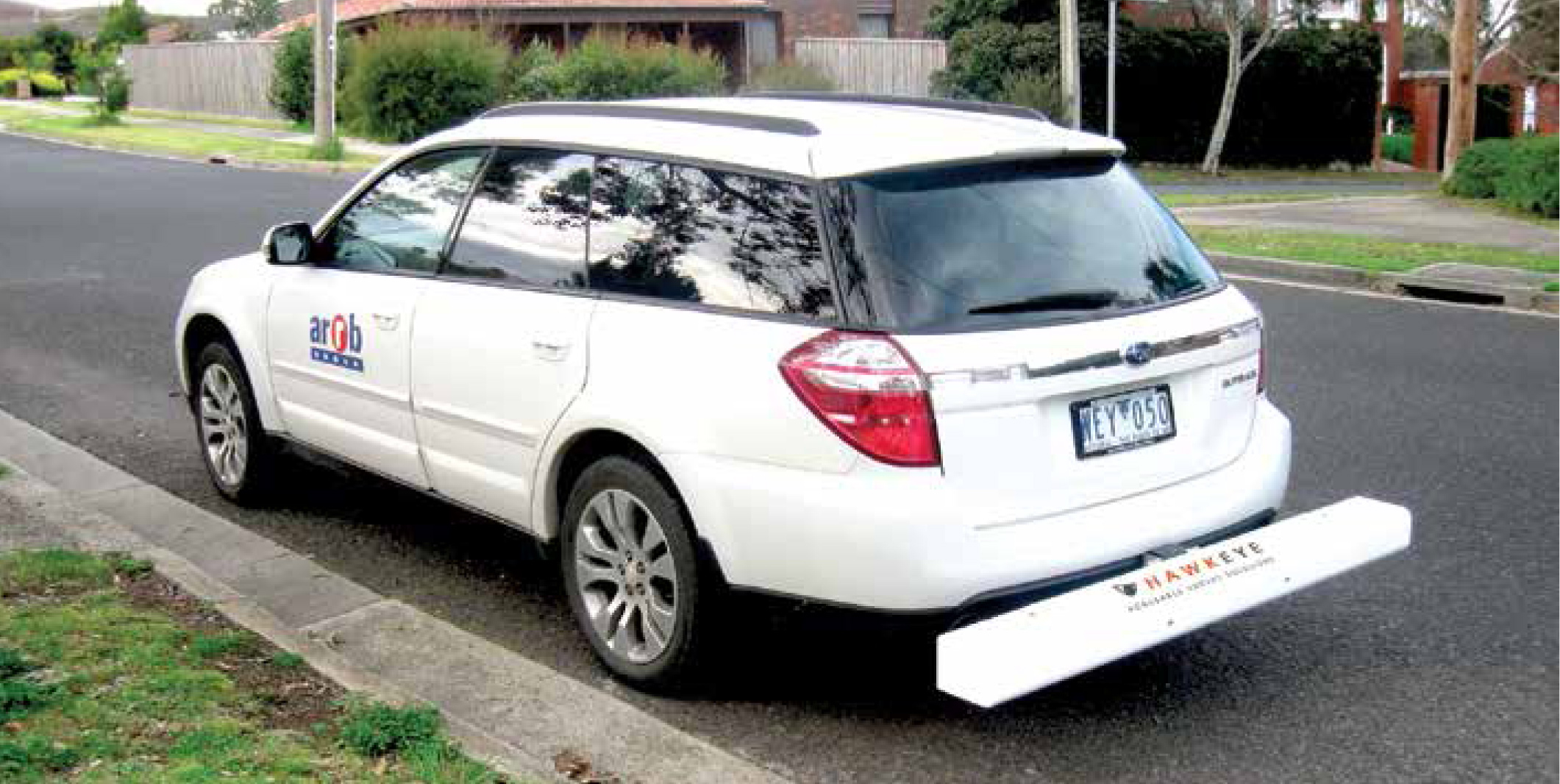

The first completely portable road and asset data collection system, with multiple configuration options.

The H1000 DUO is perfect for project level data collection demands, as well as larger scale network surveys. The system is capable of collecting longitudinal profile, roughness and macrotexture (MPD and SMTD), whilst providing fully-linked video images.
An accurate Distance Measuring Instrument (DMI) and the Heartbeat module are used to precisely link the data to distance/chainage.
Used in conjunction with the Hawkeye Processing Toolkit software, operators can produce a wide range of reports to review network condition and performance. This information can then be simply exported to CSV, or applications such as HDM-4 and GIS tools.
The H1000 DUO is capable of supporting a profiler with up-to three lasers, two digital imagery cameras, DGPS and a Gipsi-Trac Geometry system.

• World Bank Class 1 profiler with a choice of one, two or three laser combinations to suit all budgets
• Outputs of roughness, longitudinal profile and macrotexture (MPD and SMTD)
• Up to two full HD cameras can be supported
• Simple turnkey operation
• Can be shipped for remote survey requirements and short-term vehicle installations
• Uses .AVI storage files
• Data is linked to chainage and GPS coordinates
• Operational at highway speeds to reduce survey time and costs
• Ideal for use on a variety of vehicles
• Georeferencing and measurement capabilities

• Pavement condition assessment
• Identification of roadside features and assets
• Infrastructure condition assessments
• Road safety assessment
• Pavement construction quality control

• Longitudinal profile
• Roughness (IRI, NAASRA, Ride Number, HATI)
• Macrotexture (MPD and SMTD)
• Digital imagery
• GPS location / distance
• Shapefiles and KML

• ASTM E950: Longitudinal profile
• AASHTO PP37: Pavement roughness
• ASTM E1845: Pavement macrotexture
• ISO 13473: Mean Profile Depth (MPD)

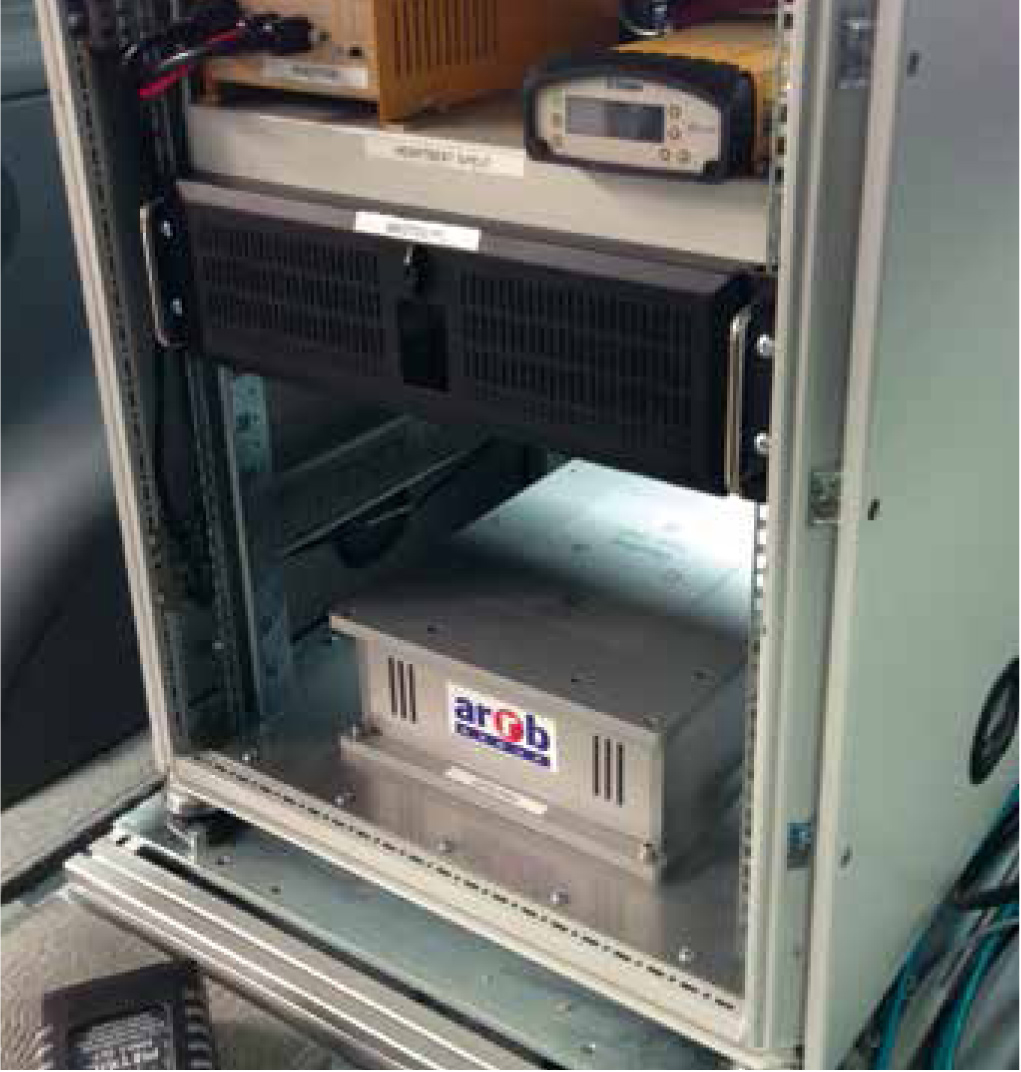

The Gipsi-Trac Geometry System uses a combination of inertial sensors to collect road geometry information.

The unit includes the Gipsi-Trac microprocessor-based system, which records and combines inertial data from a gyroscope, accelerometer and distance sensor with GPS position. The built in dead-reckoning capability allows for position data to be recorded when in tunnels, under bridges and locations with little or no GPS coverage.
It outputs data in a variety of customisable geographic projection systems that allow the user to export the data in their GPS native format, with no conversions necessary.

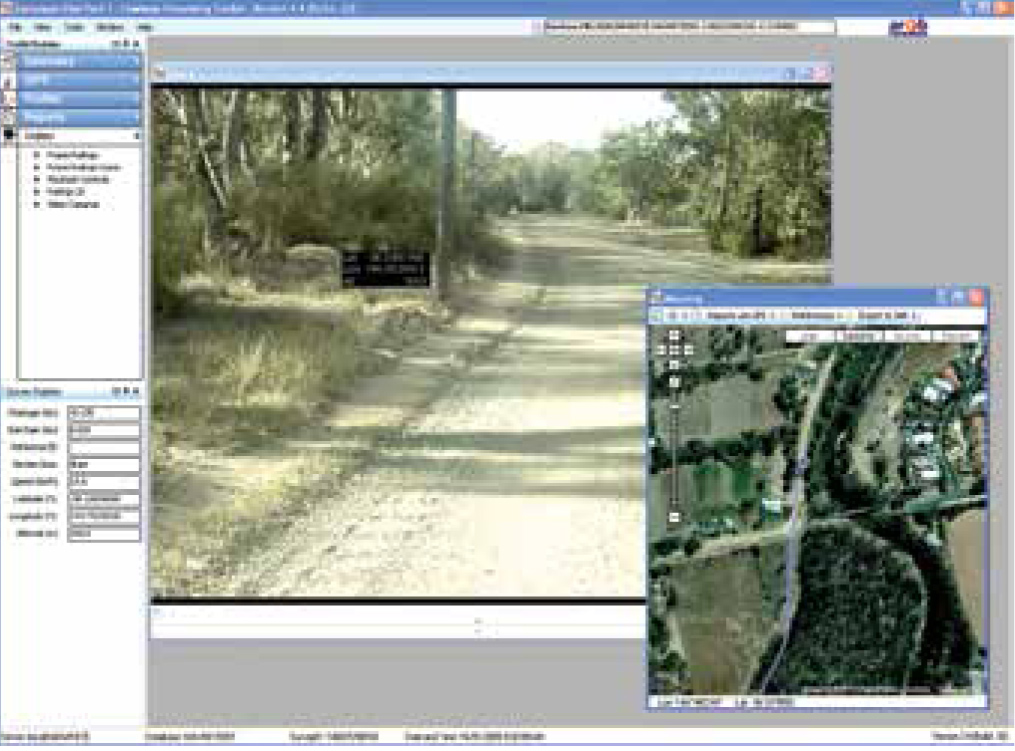

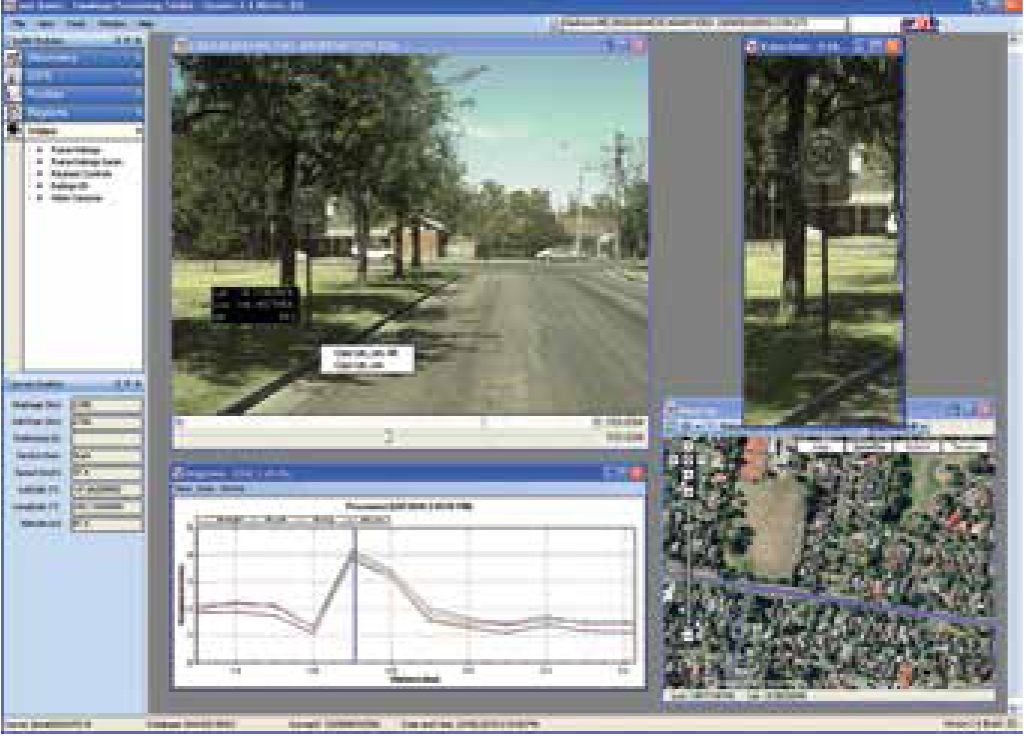

The Hawkeye Processing Toolkit software ensures that the survey data can be reviewed and processed quickly and efficiently. The data from each module can then be compared against other results and exported to most pavement and asset management systems.
The H1000 Gipsi-Trac system is capable of supporting a profiler with up-to three lasers, two digital imagery cameras and DGPS.

• Uses an integrated GPS receiver and dead-reckoning sensors
• Typical mapping accuracy of 1m after processing
• Improved gyroscope provides higher accuracy results
• Exports to CSV and point or polyline shapefiles
• Readily interfaces with a number of GIS packages
• Operational at highway speeds to reduce survey time and costs
• Fully customisable GPS projection methods (Lat, Long, Easting, Northing and a range of datums)
• Supports Universal / Transverse Mercator, geodetic projection

• Road geometry and position for 3D mapping
• Operates in all locations:

  Inside tunnels

  Under bridges

  Around highly vegetated or mountainous regions

• Locate potential sites for rainfall ponding
• Conformance to design specifications

• Grade
• Cross-slope
• Horizontal and vertical curvature
• Inertially corrected GPS location
• Distance

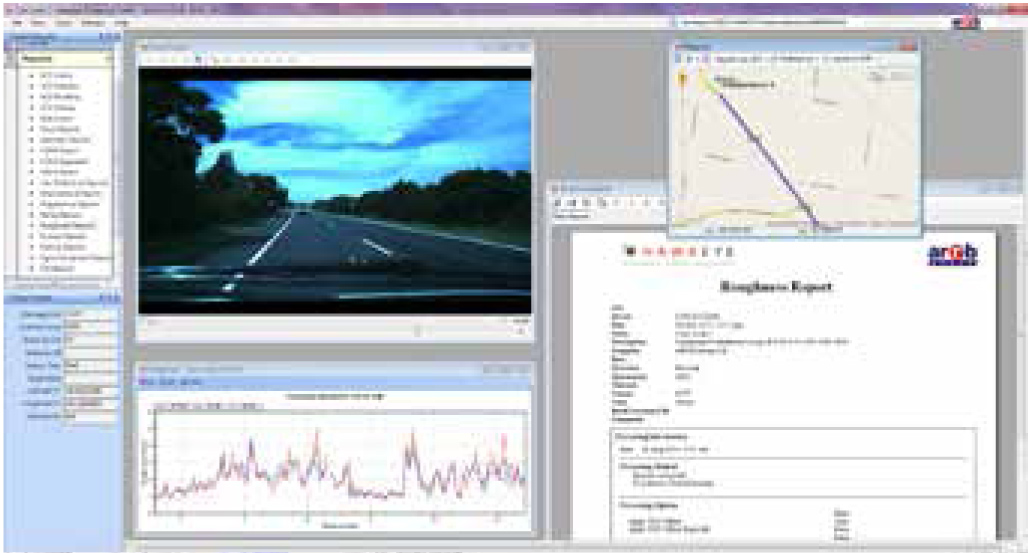

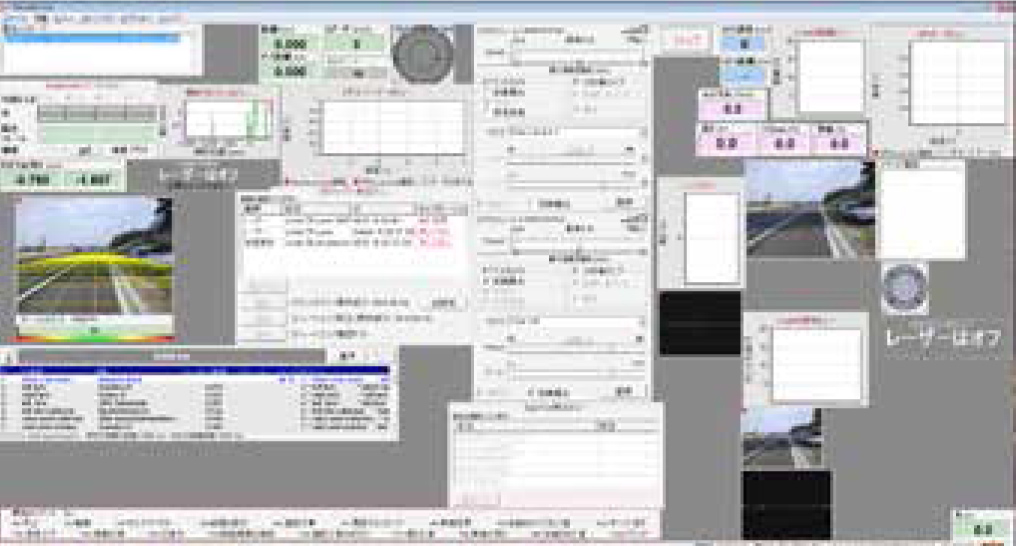

The Hawkeye software suite is a professional and powerful acquisition and data analysis combination.

• Real-time Windows graphical user interface for management of multiple computer systems
• Customisable screen layouts to suit individual operator requirements
• Multiple language support: English, Chinese, Spanish, Arabic and Russian
• Survey navigational tools such as compass, location reference points, maps and recording of events
• Computer generated speech for system warnings and other items requiring attention
• Supports a range of road reference formats

• Digital display of:

  - profilometry

  - video imagery

  - speed and distance

  -geometry

• Graphical display of:

  - GPS maps

  - inertial geometry mapping

  -road profile information

  - user defined survey notes tool

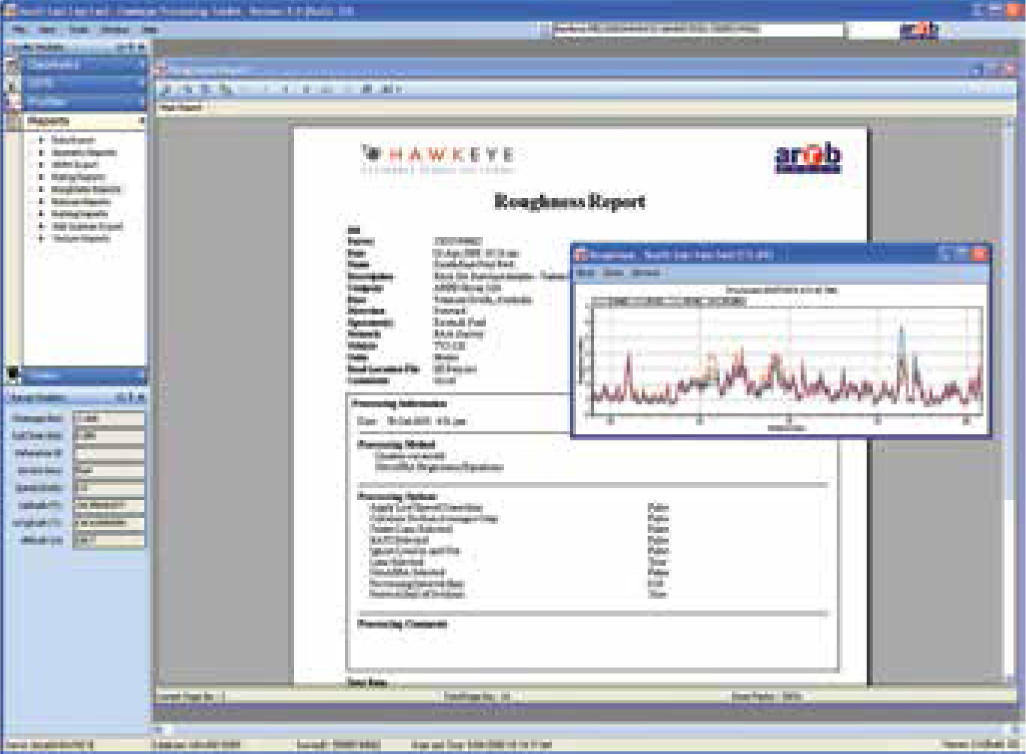

• Extensive analysis and reporting capability

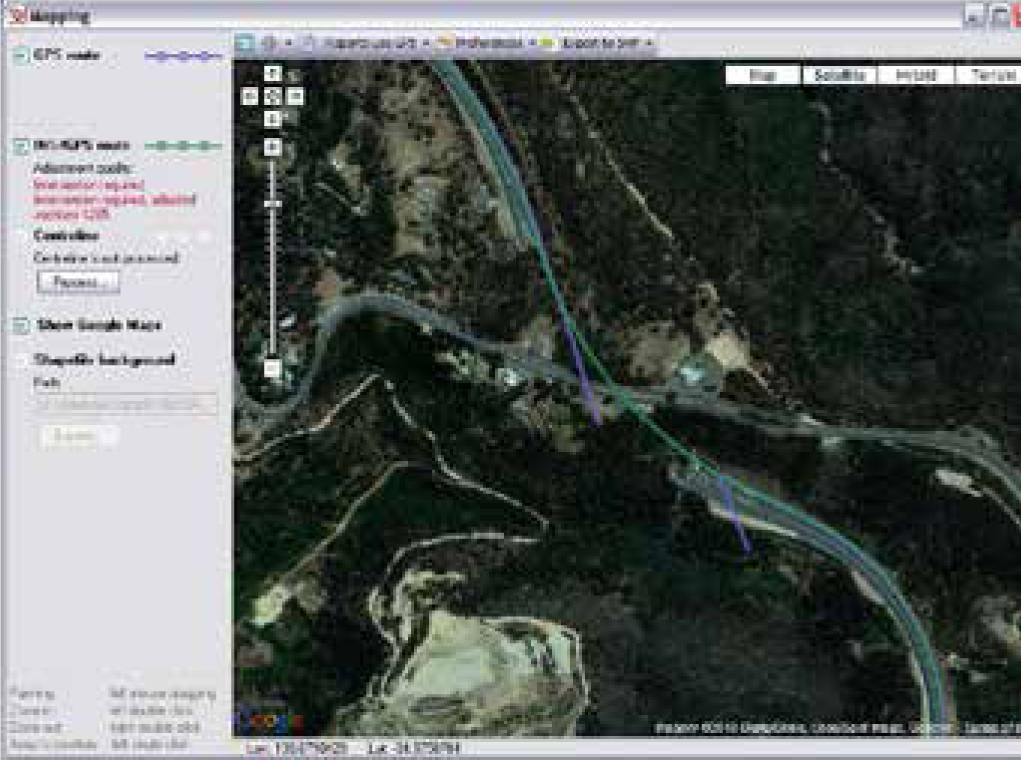

• Advanced mapping interface that supports Google background maps
• Centralised databases to allow multiple users to process and view the same survey data simultaneously
• Multiple language support: English, Chinese, Spanish, Arabic and Russian
• Metric and Imperial measurement systems supported
• Windows launching allowing for cross reference of data between applications
• Batch rubber banding and editable reference points
• Survey search filter
• Export to most PMS and GIS applications
• Batch processing and exporting
• Data export to CSV, PDF, MS Word, MS Excel, RTF, KML and SHP formats
• Windows (32 and 64 bit) compatible

• Calculation of:

  - International Roughness Index (IRI)

  -MPD and SMTD macrotexture

  -Rut index

  -Faulting

  -Longitudinal profile

  -Geometry

• Image area / length / height measurement
• Image stitching, zoom and resizing
• Asset location
• Profilometry analysis
• Graphical inertial / GPS mapping
• Shapefile imports
• User configurable rating forms
• Advanced HDM-4 exporting
